PRODUCT DETAILS

Keyword : Steel Plate

AZ50 Galvalume Steel Coil Description

Hot-dip aluminum-zinc plated steel plate is also called aluminum-zinc plated plate, aluminum-zinc plated natural color plate, aluminum-zinc plated fingerprint resistant plate and aluminum-zinc plated light plate. As the surface coating of the plate is an alloy composed of aluminum, zinc and other trace elements, it has outstanding corrosion resistance and gradually replaces galvanized plate. Aluminum-zinc plated plate is mainly used for steel structure roof, wall surface, switch cabinet body and household appliance board.
The mixed structure of hot dip aluminum zinc silicon coating has its unique advantages in corrosion resistance. When the aluminum-zinc plate is used, the zinc-aluminum eutectic in the aluminum-rich phase skeleton is first corroded, which has a good protective effect on the incision as pure zinc. The corroded product is not as easy to fall off as the galvanized plate, but is just stored in the aluminum-rich phase skeleton gap, which can prevent further corrosion of the coating to a certain extent.

Scope of Application

Construction industry: such as roof, internal and external wall panels, sound insulation walls, pipes, garages, etc.
Automotive industry: such as mufflers, exhaust pipes, wiper accessories, fuel tanks, truck containers, etc.
Household appliances: such as refrigerator backplane, air conditioner, microwave oven, LED backlight, electric cabinet, etc
Agricultural use: such as greenhouse, granary, pig farm, chicken coop, etc
Other industries: such as heat exchangers, dryers, etc.

Product Parameters

Product Name	AZ50 Galvalume Steel Coil
Thickness	0.12mm-6.00mm
Width	600mm-1500mm
Length	1m-12m, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Thickness of Aluminum Zinc Coating	30-185g/m²
Content of Al-Zn Coating	Al: 55%, Zn: 43.5%, Si: 1.5%

Chemical Composition

Al	Zn	Si	Fe	Cu	Cd	Pb	Sn	Ni	Close Cr
55-58	41-43	1.5-2	0.25	0.03	0.05	0.01	0.05	0.05	0.05

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

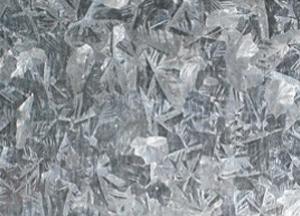

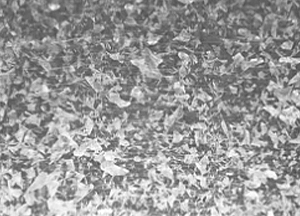

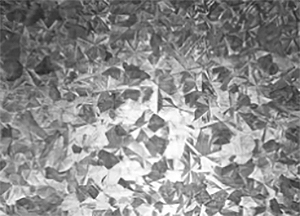

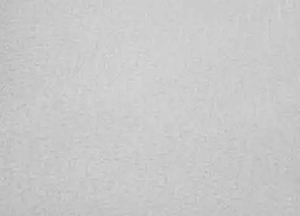

Galvanized Surface Selection

Zero Spangle	Minimized Spangle	Normal Spangle	Large Spangle

Type of Coating	Recommended Coating Weight
Aluminum-zinc Alloy	30/40/50/60/75/90/100/150
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm

Project	Classification	Symbol
Type of Coating	Aluminum-zinc Alloy	AZ
Surface Finish	Conventional Sequins	R
	Minimize Sequins	M
	Skin Through	S
Surface Treatment	Chromate Passivation	c
	Non-chromate Passivation	C5
	Chromate Passivationoiling	CO
	Chromium-free Passivationoiling	CO5
	Anti-fingerprint	N
	Chromate-free/Anti-fingerprint	N5
	No chromate high weather resistance fingerprint	NW
	Oil filling	0
	No treatment	U

Material Comparison

Chinese Standard	European Standards	American Standard	Japanese Standard
DC51D+AZ	DX51D+AZ	CS Type B, Type C	SGLCC
DC52D+AZ	DX52D+AZ	DS	SGLCD
S250GD+AZ	S250GD+AZ	255	-
S300GD+AZ	-	-	-
S350GD+AZ	S350GD+AZ	345	Class1 SGLC490
S550GD+AZ	S550GD+AZ	550	SGLC570

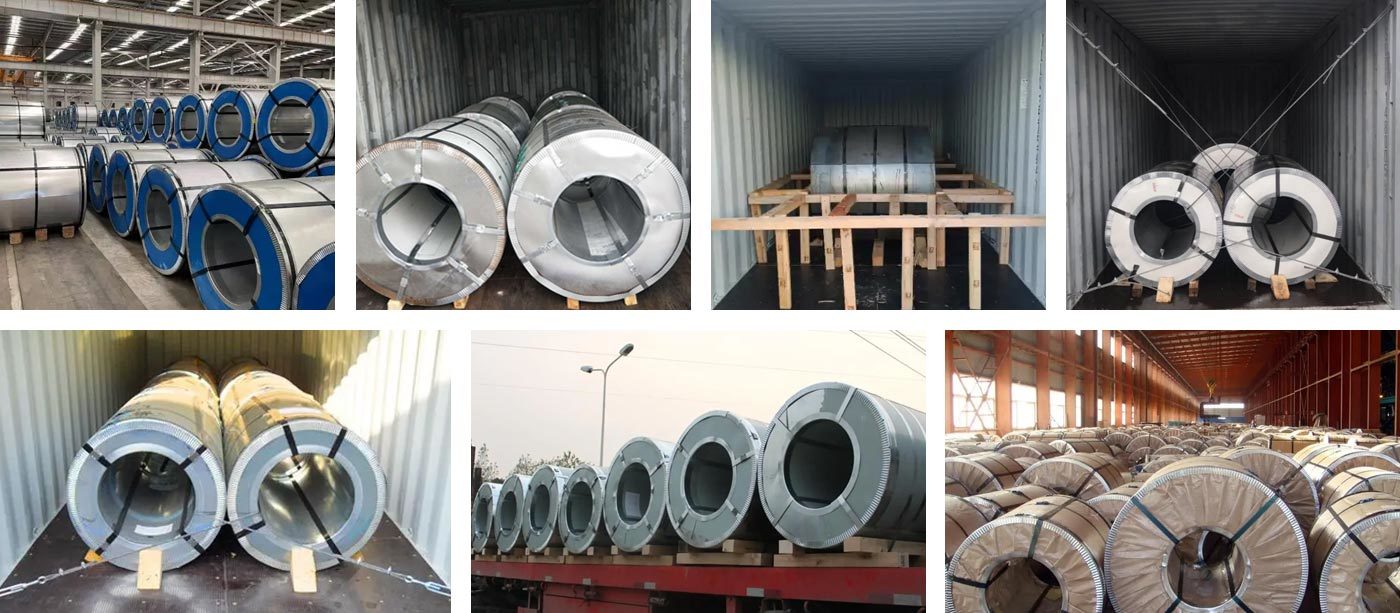

Packing and delivery

We can provide,
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation

FACTORY WORKSHOP

We have advanced processing equipments, the experienced team, strictly controls every detail of the product, equipment to strictly control the product quality. Strictly follow customer customization requirements for product production to meet customer customization requirements

Factory Workshop

CLIENT FEEDBACK

We always adhere to strict production management and quality control processes to ensure that each batch of products meets the highest standards. Our service system is perfect and widely used and recognized in all walks of life.

APPLICATION AREAS

Steel is also widely used in the manufacturing industry. It is used to produce various manufacturing equipment such as automobiles, trains, ships, agricultural machinery, heavy machinery, etc. Steel has high strength and wear resistance and is widely used in the manufacture of high-strength parts such as mechanical parts, bearings, gears, etc.

HONOR CERTIFICATE
